How setting-ring uncertainty affects bore gauge accuracy

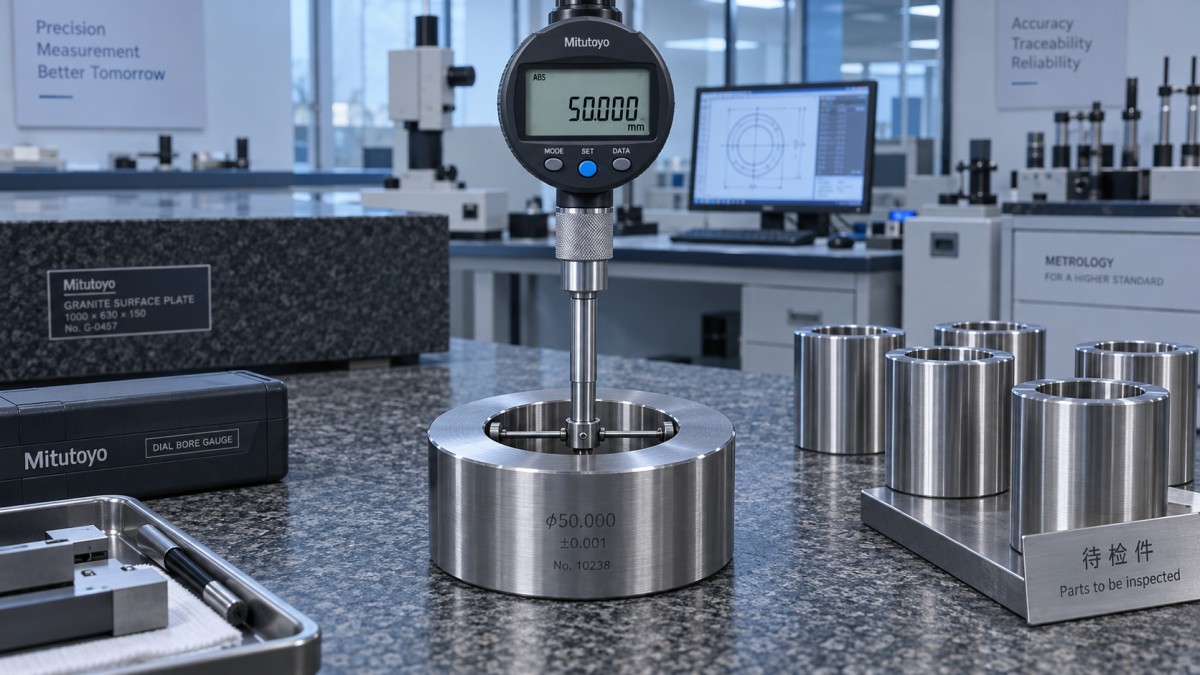

A bore gauge can repeat the same reading and still report the wrong diameter. When a comparative gauge is zeroed against a setting ring, uncertainty in the ring’s calibrated diameter transfers directly into the bore measurement. A finer display or more consistent operator technique cannot remove that reference uncertainty.

The practical distinction is between correcting a known reference error and allowing for what remains unknown. The ring’s certified diameter should establish the reference value; its calibration uncertainty belongs in the measurement uncertainty budget. Temperature, wear, contact geometry, and zero-setting technique then determine whether that certified value remains representative during inspection.

How the setting ring enters the measurement

A comparative bore gauge measures a difference rather than independently establishing an absolute diameter. For a simplified measurement model, with the indicated deviation defined as positive for a larger bore:

D_bore = D_ring,cert + Δ_ind + C

Here, D_ring,cert is the ring’s calibrated diameter, Δ_ind is the indicated difference between the bore and the ring, and C represents applicable corrections, such as thermal and indication corrections. Actual instruments may use the opposite display sign, so that convention must be verified before reporting results.

The sensitivity coefficient for the ring diameter in this model is one. Consequently, a standard uncertainty of 0.4 µm in the reference diameter contributes 0.4 µm to the bore measurement’s standard uncertainty before combination with other sources.

Consider an illustrative ring marked 50.000 mm whose certificate reports 50.0012 mm. If the gauge is zeroed in that ring but the inspection system assigns the nominal value of 50.000 mm, subsequent bore results will be understated by 1.2 µm under the sign convention above. This is a known correction being omitted—not simply an uncertainty contribution.

Using 50.0012 mm as the reference removes that known offset, but it does not make the reference exact. The certificate’s stated uncertainty remains, as do any changes between calibration and use.

Read the certificate beyond the nominal diameter

A setting-ring certificate should identify the actual calibrated result, its measurement uncertainty, the coverage factor or coverage statement, and the conditions defining the result. The distinction between expanded uncertainty and standard uncertainty is essential.

If a certificate reports expanded uncertainty U = 0.8 µm with coverage factor k = 2, the corresponding standard uncertainty is:

u_ring = U/k = 0.4 µm

That standard uncertainty is the quantity used in a conventional root-sum-square uncertainty calculation. A coverage factor of two is frequently associated with approximately 95% coverage under suitable assumptions; the certificate’s coverage statement should govern interpretation.

The calibrated quantity also matters. A certificate may report diameter at specified heights and angular orientations, or a result based on a defined measurement procedure. It should not be assumed to establish every local diameter across the ring’s internal surface.

A two-point gauge set at one height and orientation may respond to a different local dimension from a three-point gauge or from the calibration method. Roundness, taper, and contact geometry can therefore create a mismatch between the certified quantity and the effective setting dimension. These effects need evaluation, but should not be added twice if they are already covered by the certified result and uncertainty for the same measurement conditions.

ISO/IEC 17025 addresses laboratory competence and requirements concerning metrological traceability and measurement uncertainty. Accreditation is relevant evidence, but the laboratory’s scope and the uncertainty stated for the specific ring still need review. A traceable calibration is not automatically precise enough for every bore tolerance.

The certified diameter must survive the setup

The reference uncertainty on the certificate describes the calibration result. It does not automatically cover contamination, subsequent wear, mishandling, or an unstable temperature during production inspection.

A particle or oil film at a contact point can shift the zero setting. Contact-surface wear can change the effective diameter, while corrosion or impact damage can make the setting depend on orientation. Because re-zeroing reproduces the current ring condition, it may reinforce an incorrect reference rather than reveal it.

Setting technique introduces a separate contribution. With a two-point dial bore gauge, rocking locates the reversal point associated with the intended alignment. An off-axis position or inconsistent reversal-point selection changes the setting. Three-point instruments have different alignment and contact behavior; the same setup assumptions should not be transferred between instrument types without examination.

Repeatability should be tested by removing and reinserting the gauge, independently finding the setting position, and repeating the zero-setting process. Repeated readings while the gauge remains stationary reveal much less about setup uncertainty.

The workpiece measurand must also be explicit. A diameter at one cross-section is not necessarily the minimum bore diameter, a fitted-cylinder diameter, or a functional size over the full bore length. A sound setting ring cannot compensate for an inspection method that measures a different characteristic from the drawing requirement.

Temperature can outweigh the certificate uncertainty

ISO 1 establishes 20 °C as the standard reference temperature for geometrical and dimensional properties. A ring calibrated to that reference temperature will have a different physical diameter when used at another temperature.

For a first-order estimate, thermal expansion follows:

ΔD ≈ αDΔT

Using an illustrative steel expansion coefficient of 11.5 × 10⁻⁶/K, a 50 mm ring changes diameter by approximately 0.575 µm for a 1 °C temperature change. This is a calculated example, not a specified property of every steel ring; the applicable material coefficient should be used.

If the ring and workpiece are of similar material and at the same stable temperature, comparative measurement can cancel much of their common thermal expansion effect. That cancellation is not complete in every situation, and reporting a diameter at 20 °C still requires a suitable measurement model.

Different materials, unequal temperatures, and thermal gradients weaken the cancellation. A warm workpiece arriving from machining and a ring stored near room temperature can produce a significant differential effect even when the room temperature appears acceptable. Gauge components and handling can introduce further thermal behavior.

Where corrections are applied, uncertainty remains in the measured temperatures, expansion coefficients, and assumptions about uniform temperature. Where corrections are not applied, the uncorrected effect must still be evaluated. “Temperature controlled” is not sufficient evidence unless the control is appropriate to the required uncertainty.

Build the budget around the actual inspection method

For approximately independent contributions and sensitivity coefficients already incorporated, a simplified uncertainty combination is:

u_c = √(u_ring² + u_setting² + u_repeat² + u_resolution² + u_thermal² + u_other²)

This follows the uncertainty-propagation approach described in the Guide to the Expression of Uncertainty in Measurement, JCGM 100. Correlated inputs require covariance terms rather than automatic root-sum-square treatment. Shared temperature effects are one reason to examine those correlations.

The following illustrative budget shows why the ring certificate alone does not establish bore gauge accuracy:

Assuming independence, these values give a combined standard uncertainty of approximately 0.81 µm. Using k = 2 gives an illustrative expanded uncertainty of approximately 1.62 µm. A real budget must justify each value and establish whether the selected coverage factor is appropriate.

If the ring’s standard uncertainty were reduced from 0.40 µm to 0.10 µm while everything else remained unchanged, expanded uncertainty would fall only to about 1.42 µm. A better ring would help, but setup, temperature, and measurement behavior would still limit the result.

Display resolution should not be confused with accuracy. For rounding to a digital step q, the standard uncertainty is q/√12 under a rectangular-distribution assumption. Dial interpolation requires its own assessment. Resolution also should not be counted again if its effect is already adequately represented in the repeatability evaluation.

A shared reference error does not average away

Measurements taken under one zero setting share the same reference uncertainty. Measuring more parts does not reduce that contribution by the square root of the number of parts.

The same distinction applies when averaging repeated readings of one bore. Independent random variation may reduce uncertainty in the average, but the ring calibration contribution remains. Zero-setting error also remains common unless the setting is independently repeated and the averaging procedure genuinely includes that variation.

This explains why a stable measurement series can coexist with an incorrect absolute size. A constant reference offset shifts every result without necessarily increasing their spread. A gauge repeatability and reproducibility study can characterize important process variation, but it does not replace an assessment of reference bias and traceability.

Reference uncertainty may matter less when evaluating relative changes between parts measured under the same conditions. It matters directly when those results are compared with absolute specification limits.

Acceptance limits must account for uncertainty

For a bore specified as 50.000 mm ± 0.005 mm, the tolerance interval is 49.995 mm to 50.005 mm. A measured result of 50.0045 mm lies inside that interval, but an expanded uncertainty of 1.62 µm extends beyond the upper limit.

Under a conservative decision rule requiring the entire interval y ± U to remain within specification, the result would not demonstrate conformity. With constant U = 0.00162 mm, the corresponding acceptance interval would be 49.99662 mm to 50.00338 mm.

This is a guard-band example, not a universally mandatory rule. ISO 14253-1 addresses decision rules for verifying conformity or nonconformity in geometrical product specification. ILAC-G8 provides guidance on decision rules and statements of conformity. The applicable standard, contract, or inspection procedure should define how uncertainty affects acceptance.

A result that does not demonstrate conformity under a guarded rule does not necessarily prove nonconformity. The procedure needs a defined treatment for such results: improved measurement, additional inspection, or disposition under an agreed rule. Simple acceptance without guard bands carries a different risk allocation and should not be used implicitly.

Control the reference, not just the gauge

The most effective control depends on the dominant contribution. If ring calibration uncertainty dominates, a lower-uncertainty reference can materially improve the result. If thermal mismatch or setting variability dominates, improving the certificate alone offers limited benefit.

The ring’s identity, certified value, correction, and calibration status should remain linked to the measurement record. Intermediate checks can help detect changes, but repeated checks against the same ring cannot independently establish that ring’s stability. Comparison with another suitable reference, combined with inspection and calibration history, provides stronger evidence.

Recalibration intervals should reflect use, environment, handling risk, and observed stability. Damage, unexplained zero shifts, or abnormal comparison results warrant investigation before the scheduled date. If a ring is subsequently found outside its expected condition, the impact assessment should include measurements made since its last reliable verification.

The defensible claim is therefore not merely that the bore gauge is accurate. It is that the complete measurement method—reference value, setup, thermal conditions, instrument behavior, and decision rule—supports the required conformity judgment. A highly repeatable gauge cannot supply that assurance when its setting reference is inadequately known.
