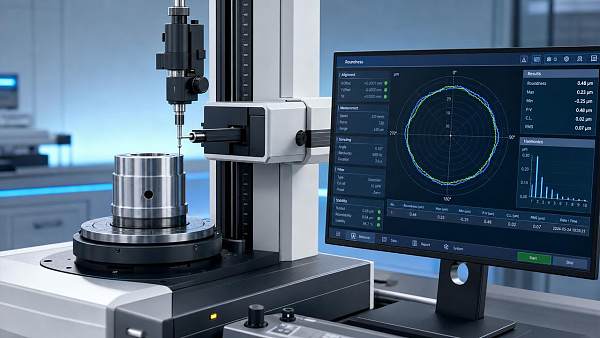

Roundness Deviation Calculation Data: Key Errors to Avoid

Accurate roundness deviation calculation data is essential for operators who need reliable measurement results on the shop floor. Yet small mistakes in setup, sampling, filtering, or reference selection can quickly distort evaluation outcomes and lead to rework, scrap, or false quality decisions. This guide highlights the key errors to avoid so users can improve consistency, interpret results correctly, and support tighter process control.

Why Roundness Deviation Calculation Data Often Goes Wrong in Daily Use

Most roundness problems are not caused by bad instruments alone. They usually come from avoidable operator errors during part setup, measurement parameter selection, data treatment, and result interpretation.

For shop-floor users, the main search intent behind roundness deviation calculation data is practical. They want to know why results change, which mistakes affect accuracy most, and how to prevent false pass or fail decisions.

What matters most is not a long theory lesson. Operators need clear guidance on how calculation data is generated, what can distort it, and which checkpoints protect repeatability in routine inspection.

If your measured roundness value looks unstable between runs, shifts between machines, or conflicts with process history, the issue is often buried in method rather than in the part itself.

Start with the Biggest Risk: Incorrect Part Alignment and Centering

One of the most common causes of misleading roundness deviation calculation data is poor centering or leveling. If the workpiece axis is not correctly aligned, the instrument records extra motion as form error.

Even a high-quality roundness tester cannot compensate for a poorly mounted part. Eccentricity, tilt, or unstable fixturing can create artificial lobing patterns that look like genuine geometry defects.

Operators should confirm that the part is seated securely, free from dirt, and not deformed by clamping force. A small burr, chip, or over-tight fixture can shift the reading more than expected.

Before accepting data, perform a repeat measurement after reloading the part. If the result changes significantly, setup error is likely affecting the calculation more than actual roundness variation.

For cylindrical parts, use consistent centering routines and verify that the rotation axis and datum relationship match the inspection plan. Skipping this step weakens every calculation that follows.

Do Not Confuse Measurement Noise with Actual Form Error

Another major error appears when operators treat all captured signal variation as real surface deviation. In practice, raw data can include vibration, spindle error, electrical noise, or environmental disturbances.

This becomes especially serious when tolerance bands are tight. A few unstable points can inflate the evaluated roundness value and make an acceptable part appear nonconforming.

Check whether the machine is placed on a stable surface and isolated from nearby machining activity. Airflow, impact, and floor vibration can all influence sensitive form measurements.

Probe condition also matters. A worn stylus, contaminated contact point, or damaged sensor path can create irregular traces that contaminate roundness deviation calculation data before analysis even begins.

If the profile shape changes unpredictably from one scan to the next, investigate measurement system stability first. It is risky to blame the part before eliminating external interference sources.

Sampling Strategy Can Distort the Final Roundness Result

Many users underestimate how sampling settings affect calculation outcomes. Too few measurement points may miss local peaks and valleys, while poor angular resolution can smooth out real geometric defects.

On the other hand, increasing data density without a reason does not always improve quality. It can capture more noise, enlarge file complexity, and make filtering decisions more critical.

The right strategy depends on part size, expected error frequency, surface condition, and tolerance level. A coarse setup may be acceptable for rough screening but not for final acceptance.

Operators should follow defined measurement programs rather than changing sampling conditions casually between batches. Inconsistent sampling settings are a frequent reason why results cannot be compared over time.

When reviewing suspicious data, ask a simple question: was the profile sampled finely enough to represent the actual form, but not so aggressively that it exaggerated noise?

Filtering Errors Can Change the Meaning of the Data

Filtering is one of the least understood but most influential steps in roundness evaluation. Different filter choices can remove waviness, retain roughness-related components, or reshape the reported deviation value.

If the filter cutoff does not match the inspection requirement, the final result may be technically precise but practically wrong. That means the number is consistent, yet not suitable for specification judgment.

Operators should not apply default filtering blindly. They need to confirm whether the drawing, internal standard, or customer method defines the required evaluation condition.

Using one filter on one machine and a different filter on another can produce conflicting roundness deviation calculation data for the same part. This problem is common in multi-site production environments.

Whenever possible, document the filter type, cutoff, and software settings in the inspection routine. Reliable results depend not only on collecting data, but on preserving evaluation consistency.

Reference Circle Selection Is a Frequent Source of Misinterpretation

Roundness values are not calculated in a vacuum. They depend on the reference method used to fit the measured profile, such as least squares circle, minimum zone circle, maximum inscribed circle, or minimum circumscribed circle.

Different reference circles can generate different numerical results from the same profile. If operators do not understand which method is required, they may report the wrong value with full confidence.

This is a critical issue because customers, standards, and internal procedures may not use the same evaluation reference. A result that passes under one method may fail under another.

For shop-floor users, the practical lesson is simple: never assume the software default is correct. Confirm the specified reference before reviewing or exporting roundness deviation calculation data.

If your result seems unexpectedly high or low, compare the fit method first. Many apparent discrepancies between systems are caused by reference selection rather than actual part differences.

Surface Condition Problems Can Corrupt the Measurement Before Calculation Begins

Calculation quality depends on input quality. If the measured surface contains oil film, dust, burrs, scratches, plating defects, or handling damage, the data may reflect contamination instead of true roundness.

This is especially important for operators inspecting freshly machined or transferred parts. Residue from coolant, polishing media, or transport contact can alter probe behavior and create false local deviations.

Clean the part using an approved method and inspect the measurement path visually before testing. Do not assume the profile is ready just because the dimensionally related process has finished.

Also consider thermal condition. A part measured too soon after machining may not be stable. Temperature gradients can affect geometry enough to influence high-precision roundness assessment.

Good practice is to standardize part cleaning, handling, and stabilization time. These simple routines often improve roundness deviation calculation data more than software adjustments do.

Software and Program Setup Errors Are More Common Than Many Operators Expect

In many facilities, operators trust saved programs without checking whether they match the current part revision, tolerance zone, or measurement location. This can create systematic reporting errors.

A wrong measurement section height, incorrect nominal diameter, outdated tolerance limits, or mismatched evaluation template can all produce misleading conclusions even when raw data collection is stable.

Program reuse is efficient, but only when change control is strict. If multiple similar parts exist, small differences in drawing callouts can be overlooked during busy production shifts.

Before running a batch, verify the part ID, revision level, trace position, filtering rule, and reference method. A sixty-second review can prevent hours of unnecessary containment work.

When possible, lock critical parameters through controlled user permissions. This reduces accidental edits that may compromise roundness deviation calculation data across operators and shifts.

Repeatability Checks Help You Separate Part Variation from Measurement Error

Operators often react to a single unexpected number too quickly. A better approach is to test repeatability by measuring the same part multiple times under controlled conditions.

If repeated runs on the same setup give inconsistent values, the issue may be machine instability, data treatment inconsistency, or environmental influence. If reloading changes results, fixturing is a stronger suspect.

This simple habit helps users avoid false process alarms. It also builds confidence when a real out-of-round condition is present, because the result remains stable across repeated evaluation cycles.

For routine control, define a quick repeatability rule. For example, if three measurements of a known stable part exceed an acceptable spread, stop and investigate before releasing product.

Reliable roundness deviation calculation data should be not only accurate once, but reproducible under the same method. Repeatability is the practical proof that your data can be trusted.

How to Read the Result Correctly Instead of Focusing Only on the Final Number

Many users look only at the final roundness value, but the profile trace itself often reveals the source of trouble. The shape pattern can indicate setup error, vibration, tool wear, or process instability.

For example, repeating lobes may suggest machining behavior, while irregular spikes may point to contamination or measurement disturbance. A shifted baseline may indicate centering or alignment issues.

Reading the graph together with the numeric result gives operators stronger diagnostic power. It helps distinguish a true production problem from a measurement artifact before corrective action begins.

Trend comparison is also useful. If roundness deviation calculation data drifts gradually across batches, the cause may be wear or thermal shift. If the change is sudden, setup or system factors deserve attention.

Good operators do not just record values. They interpret the evidence around those values and use it to support faster, more accurate process decisions.

A Practical Checklist to Avoid Errors in Roundness Deviation Calculation Data

To improve consistency, use a short routine before accepting any result. Confirm part cleanliness, stable mounting, correct alignment, approved program, proper sampling, correct filter, and specified reference method.

Then review the trace quality, not just the reported number. Look for spikes, unusual patterns, or inconsistent shapes that suggest non-geometric influence on the measurement result.

If the value is near the tolerance limit, repeat the measurement under the same conditions. If needed, remount the part and compare the outcome before making a pass or fail decision.

Document unusual cases and share them across shifts. Many recurring data quality problems become manageable once operators recognize the same error pattern early and respond with standard checks.

In practical terms, the best roundness deviation calculation data comes from disciplined measurement habits, not from software alone. Process discipline is what turns data into trustworthy quality evidence.

Conclusion

For operators, the goal is clear: produce roundness results that are consistent, explainable, and useful for quality decisions. Most major errors come from setup, sampling, filtering, reference choice, and poor input conditions.

When roundness deviation calculation data looks unstable, do not assume the part is bad immediately. First examine alignment, fixturing, environmental noise, program settings, and evaluation parameters.

By controlling these factors, users can reduce false rejects, avoid false acceptance, and improve process feedback on the shop floor. Better data leads to better action, and better action protects precision manufacturing.
