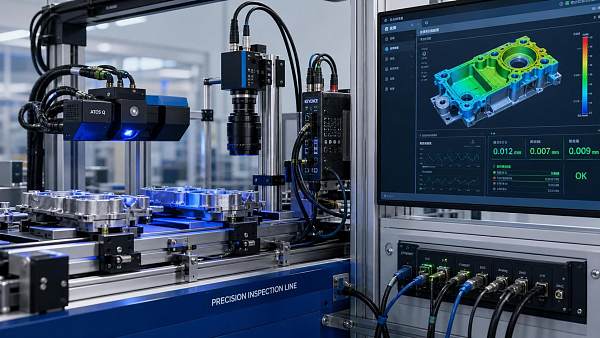

When System Integration Fails in Inspection Projects

Why system integration becomes the real bottleneck in inspection projects

Inspection projects rarely fail because one camera, scanner, or analyzer performs badly on its own.

The harder problem is system integration across sensors, software, motion control, data formats, and validation rules.

When that chain breaks, schedule slips usually appear before technical root causes become visible.

In practice, rework often starts with small mismatches.

A 3D scanner exports data differently than expected.

A vision system timestamps images on another clock.

A test platform passes raw values, but not the metadata needed for traceability.

That is why system integration matters in metrology, optics, electrical test, non-contact inspection, and environmental sensing alike.

Across these mixed environments, the useful question is not whether integration is needed.

The useful question is where it will fail first, and how early that can be exposed.

Organizations following benchmark-driven practices, such as those reflected by G-IMS, usually treat integration as a measurable engineering scope, not an afterthought.

What does system integration failure actually look like on an inspection line?

It does not always arrive as a complete shutdown.

More often, system integration failure shows up as unstable throughput, repeated calibration, missing data links, or disputed pass-fail results.

A line may appear operational while quality confidence is quietly deteriorating.

Common symptoms usually include:

• Inspection devices pass factory acceptance tests but fail during real production handoff.
• Measurement results cannot be reproduced across shifts, stations, or software versions.
• Data reaches the MES or SPC platform, yet lacks context for audits and root-cause analysis.
• Engineering teams spend more time translating outputs than improving detection capability.
• Regulated or customer-driven reports require manual correction before release.

These symptoms are especially expensive in high-precision sectors.

Semiconductor, aerospace, electronics, and advanced assembly lines depend on tight alignment between measurement and decision logic.

If one layer drifts, downstream confidence falls with it.

Where do most system integration problems start?

The starting point is usually earlier than expected.

System integration often fails during specification, long before installation begins.

Teams may define sensor accuracy and takt time, yet leave interface ownership vague.

They may approve equipment lists without fixing data schemas, trigger logic, or calibration responsibilities.

A practical way to read the risk is through the table below.

The pattern is consistent across industries.

The device stack may change, but system integration usually fails where assumptions were never written down.

How can you tell whether the issue is hardware, software, or integration logic?

This is where many projects lose time.

A weak result is often blamed on the sensor, even when the real issue sits in sequencing or data interpretation.

A better diagnostic approach is to isolate the failure by layers.

Start with a three-layer check

• Physical layer: power stability, optics, fixtures, vibration, environmental interference.
• Control layer: triggers, latency, PLC handshake, axis position, version compatibility.
• Information layer: data structure, unit conversion, naming, timestamping, storage, reporting.

If the device performs correctly in bench tests but fails in workflow, system integration becomes the leading suspect.

In actual deployments, this distinction matters because the remedy changes completely.

Replacing hardware will not solve a timing map problem.

Writing custom code will not fix thermal drift around an optical path.

Benchmark repositories like G-IMS are useful here because they compare systems against recognized technical standards, not vendor assumptions alone.

Which mistakes make system integration more expensive than planned?

The cost spike rarely comes from the original equipment quote.

It usually comes from unplanned engineering hours, delayed acceptance, and repeated site work.

Several mistakes drive that escalation.

• Treating system integration as wiring and communication only.
• Approving equipment without a shared source of truth for protocols and report outputs.
• Leaving acceptance criteria split across vendors, internal teams, and end users.
• Ignoring calibration transfer between pilot setup and full production line.
• Skipping edge cases such as recipe switching, rework loops, and abnormal environmental conditions.

More expensive still is the hidden cost of poor decisions based on bad inspection data.

A false pass can be worse than a false reject.

That is particularly true when inspection data feeds process control, supplier claims, or regulated quality records.

What should be confirmed before an inspection project goes live?

A strong launch decision depends on more than device readiness.

Before go-live, system integration should be checked as an operational workflow.

The most reliable reviews usually cover these points:

• Every signal path is documented from acquisition to final decision.
• Measurement uncertainty and pass-fail logic are aligned with use-case risk.
• Data records include revision, operator, recipe, timestamp, and calibration status.
• Failure handling is defined for device offline states, network interruptions, and out-of-range values.
• Acceptance testing includes normal throughput and stress conditions.
• Standards mapping is verified where ISO/IEC 17025, IEEE, or NIST references matter.

This is also the stage where many teams benefit from external benchmarking.

Not because external sources replace engineering judgment, but because they expose blind spots in interoperability and validation scope.

If system integration is already failing, what is the fastest recovery path?

Speed matters, but random troubleshooting usually extends the delay.

The fastest recovery path is a controlled narrowing of variables.

Begin by freezing software revisions and documenting the last known stable behavior.

Then test the inspection flow in short segments, not as one full line event.

For example, validate acquisition first, then transfer, then rule execution, then reporting.

That structure makes system integration faults easier to locate and assign.

It also prevents circular blame between hardware, software, and controls teams.

If external references are needed, use benchmark criteria grounded in performance, traceability, and standards alignment.

That is where institutions such as G-IMS add value: they frame technical comparison around actionable insight rather than marketing claims.

A practical closing question: what should happen next?

When system integration fails in inspection projects, the real damage is not only delay.

It is the loss of trust in measurement, data, and release decisions.

The next step should be concrete.

Map the full inspection workflow, identify every interface owner, and define what must be proven before acceptance.

Then compare that map against actual device behavior, data structure, and validation standards.

That approach turns system integration from a vague project risk into an engineering checklist with measurable gaps.

For complex environments spanning metrology, optics, electrical measurement, machine vision, and sensing, this discipline is often the difference between a working demo and a dependable production system.
