Roundness Deviation Calculation Data: Common Errors and Fixes

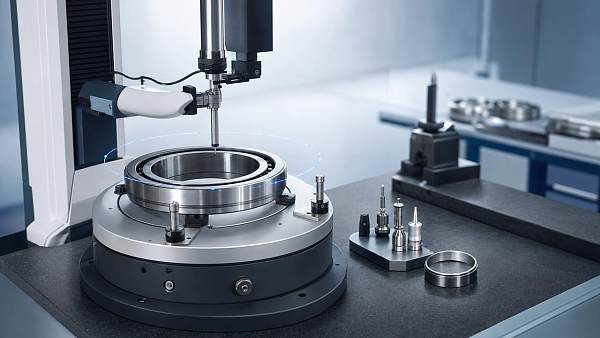

Accurate roundness deviation calculation data is essential for operators who need reliable measurements, stable process control, and fewer inspection errors. Yet many results are distorted by incorrect setup, poor sampling, or misread software outputs. This guide explains the most common mistakes behind roundness deviation calculation data and shows practical fixes to improve precision, consistency, and day-to-day measurement confidence.

Why does roundness deviation calculation data go wrong in daily operation?

For operators, bad roundness deviation calculation data rarely comes from one dramatic failure. It usually comes from several small errors that stack together across fixturing, probe contact, part cleaning, filtering, and report interpretation.

In mixed-production environments, the risk is even higher. A shop may inspect shafts, bearings, valve seats, housings, and precision bores on different systems, but still expect one reporting logic. That assumption often creates inconsistent results.

G-IMS focuses on this exact gap between raw measurement and actionable industrial decisions. By benchmarking metrology workflows against ISO/IEC 17025 thinking, operator practice, and equipment capability, it helps teams understand whether a data problem comes from the part, the instrument, or the process.

• Instrument-side issues include spindle error, probe wear, vibration, thermal drift, and outdated calibration intervals.
• Operator-side issues include wrong datum selection, unstable clamping, poor cleaning, and inconsistent measurement paths between shifts.
• Software-side issues include the wrong reference circle method, incorrect filter settings, and misunderstanding of peak-to-valley plots.

What operators should distinguish first

Before adjusting a machine or rejecting a batch, operators should separate three questions: Is the signal valid? Is the calculation method correct? Is the result fit for the drawing requirement? This sequence prevents unnecessary rework.

Common error sources in roundness deviation calculation data

The table below summarizes frequent causes of unreliable roundness deviation calculation data in cross-industry inspection cells. It is especially useful when results shift between operators, machines, or production lots.

This comparison shows an important point: roundness deviation calculation data is not just a number. It is the output of a measurement chain. If one link is weak, the report can still look clean while the conclusion is wrong.

Setup mistakes that seem minor but affect results

Operators often underestimate burrs, coolant film, dust, and surface handling marks. On tight-tolerance parts, these can create false peaks that software reads as form error instead of contamination or contact noise.

Another issue is measuring too close to edges, chamfers, oil grooves, or interrupted surfaces. Even when the instrument captures data correctly, the selected trace may not represent the actual functional diameter zone.

Which calculation methods create confusion for operators?

One of the biggest reasons for inconsistent roundness deviation calculation data is method confusion. A part can produce different values depending on how the software fits the reference circle and which standard the drawing logic expects.

The four methods operators see most often

• Least Squares Circle (LSC): Common for general analysis and trend monitoring. Stable for process comparison, but not always the strictest acceptance method.
• Minimum Zone Circle (MZC): Frequently closer to functional tolerance evaluation because it minimizes radial separation between two concentric circles.
• Maximum Inscribed Circle (MIC): Useful where internal fit function matters, such as bores.
• Minimum Circumscribed Circle (MCC): Often relevant for external fit conditions, such as shafts needing outer boundary control.

When operators use LSC for speed while engineering expects MZC for acceptance, disagreement is inevitable. The solution is simple but often skipped: link drawing requirements, inspection plans, and software templates before production release.

The table below helps operators choose the right interpretation path for roundness deviation calculation data rather than relying on whichever default appears on screen.

For many plants, this is where G-IMS adds value. Instead of evaluating a sensor or metrology system in isolation, it connects hardware capability, software logic, and the actual acceptance rule used on the shop floor.

How should operators improve measurement stability step by step?

A stable workflow is more valuable than occasional perfect readings. Operators need repeatable roundness deviation calculation data across shifts, batches, and part families. The process below is practical for most industrial cells.

1. Clean the part and fixture thoroughly, especially if oil, dust, or polishing residue can change contact behavior.
2. Verify part seating and clamping force. Over-clamping thin rings or soft materials can distort form before scanning begins.
3. Check master artifact or reference part repeatability before inspecting a production batch.
4. Confirm sample count, scanning speed, and filter settings against the inspection plan rather than using last-job defaults.
5. Review waveform plots and not just the final value. Sudden spikes often indicate contamination or setup error.
6. Store the validated routine as a locked template so different operators do not create silent variation.

When to suspect the environment instead of the part

If results drift gradually during the day, temperature, floor vibration, or nearby machine activity may be influencing the system. This is common in plants where precision inspection shares space with machining, grinding, or heavy handling traffic.

Environmental monitoring is not separate from form measurement quality. G-IMS treats metrology, optics, sensor integrity, and environmental variables as one linked performance problem, which is especially useful in high-mix manufacturing.

What should buyers and operators check when selecting a measurement solution?

Not every application needs the same inspection platform. Some facilities need a dedicated roundness tester. Others can use a CMM, vision-assisted system, or multi-sensor station if traceability, tolerance level, and throughput are balanced correctly.

The table below supports procurement and process teams that want better roundness deviation calculation data without overbuying or selecting a system that operators struggle to run consistently.

This type of selection framework is particularly important in organizations where procurement, quality, and production use different success metrics. Good purchasing decisions should improve both measurement confidence and operator efficiency.

Avoiding false economy

Choosing a lower-cost system that lacks proper software control, environmental resilience, or training support can raise total inspection cost later. Rechecks, disputes, scrap reviews, and delayed release decisions often cost more than the initial savings.

How do standards and compliance affect roundness deviation calculation data?

Operators may not manage accreditation directly, but compliance still shapes daily work. If a facility supports aerospace, semiconductor, medical, or advanced industrial supply chains, measurement records must be credible, repeatable, and explainable.

• ISO/IEC 17025 principles support traceable calibration, documented methods, and controlled uncertainty thinking.
• GPS and form measurement conventions help define how geometric deviation should be evaluated and reported.
• Internal quality procedures should lock down method selection, report templates, and operator authority for overrides.

The key lesson is simple: trustworthy roundness deviation calculation data is not only about instrument precision. It also depends on documented setup, consistent evaluation logic, and an auditable path from raw trace to pass-fail decision.

FAQ: practical questions operators ask most

Why do two machines show different roundness deviation calculation data for the same part?

The most common reasons are different reference circle methods, different filtering, unequal sampling density, fixture variation, or calibration status differences. Compare setup files first before assuming one machine is faulty.

How many points should be sampled for roundness measurement?

There is no universal count that fits every part. Higher-resolution sampling is typically needed for smaller tolerances, fine lobing, or surfaces with local defects. The count should match part size, expected waveform detail, and inspection purpose.

Should operators trust the final number or the graph?

Both matter. The number drives acceptance, but the graph explains the cause. A suspicious spike, asymmetrical pattern, or sudden lobe can reveal contamination, setup error, or process change that a single value cannot explain by itself.

When is a dedicated roundness tester better than a general CMM?

A dedicated roundness system is usually better when form tolerance is tight, throughput is high, or trace detail is critical for release decisions. A CMM may still be suitable for mixed-feature inspection where roundness is important but not the dominant critical characteristic.

Why choose us for better roundness deviation calculation data?

G-IMS supports industrial teams that need more than a generic equipment list. Its strength is connecting metrology hardware, sensor behavior, environmental factors, and software evaluation logic into a usable decision framework for operators, quality leaders, and buyers.

If your team is comparing systems, troubleshooting unstable roundness deviation calculation data, or preparing a tighter inspection process, you can consult on specific topics instead of starting from scratch.

• Parameter confirmation for part size, tolerance band, sampling strategy, and evaluation method.
• Measurement solution selection for dedicated roundness systems, CMM-based workflows, or multi-sensor inspection setups.
• Delivery and implementation planning, including routine setup, operator training priorities, and verification checkpoints.
• Compliance discussion around traceability expectations, calibration workflow, and reporting consistency.
• Quotation and customization support for different production volumes, inspection risks, and integration needs.

For operators, the real goal is not just getting a lower number. It is getting roundness deviation calculation data that is repeatable, explainable, and aligned with actual production decisions. That is the standard worth building toward.
