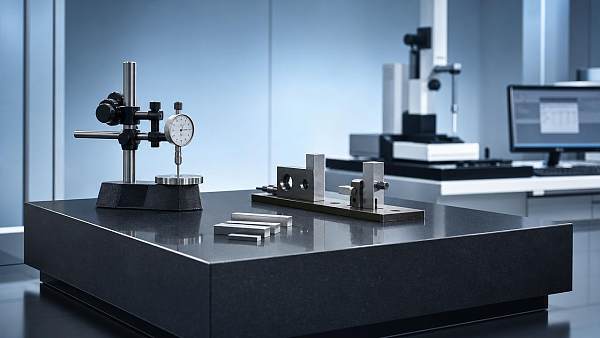

Granite Plate Flatness Grade Benchmarks for Inspection

Understanding granite plate flatness grade benchmarks is essential for operators who rely on stable, high-precision inspection surfaces every day. This guide explains how flatness grades are defined, why they matter for measurement accuracy, and how to select the right granite plate for inspection tasks in demanding industrial environments.

Why granite plate flatness grade benchmarks matter

Granite surface plates are reference foundations for dimensional inspection, layout work, and gauge calibration. If the plate is not flat enough, every downstream reading can shift, even when the instrument itself remains within tolerance.

That is why granite plate flatness grade benchmarks matter across aerospace, automotive, electronics, machining, optics, and laboratory environments. The benchmark does not describe appearance alone. It defines the permitted flatness error over the working surface.

In practical terms, the grade affects repeatability, uncertainty budgets, recalibration intervals, and fixture strategy. A plate chosen only by size or price often becomes the weakest link in an otherwise controlled inspection process.

How flatness grades are typically defined

Granite plate flatness grade benchmarks are usually tied to recognized standards and manufacturer specifications. Common grade naming includes laboratory grade, inspection grade, and workshop grade, though labels vary by region and supplier.

The key point is the allowable deviation between the highest and lowest points across the surface. Lower deviation means a higher precision grade. Larger plates usually permit more total variation than smaller plates within the same grade family.

Benchmarking should also consider local repeat reading accuracy, not only overall flatness. A plate may satisfy a broad flatness tolerance while still showing localized wear patterns near common measurement zones.

Common grade interpretation principles

• Verify the governing standard before comparison, because identical grade names may represent different tolerance formulas across countries, sectors, and supplier documentation.
• Check both overall flatness and repeat measurement zones, since frequent use often concentrates wear near the center or front edge.
• Match the grade to measurement uncertainty targets, not to preference alone, because over-specifying the plate can increase cost without improving process capability.
• Review calibration reports for measurement method, support points, environmental conditions, and traceability, not just the final pass or fail statement.

Checklist for selecting the right inspection plate

Use this checklist when applying granite plate flatness grade benchmarks to a purchasing, replacement, or audit decision. Each point reduces the risk of selecting a plate that conflicts with the actual inspection task.

1. Define the measurement purpose first, separating layout work, incoming inspection, final verification, and master gauge support before comparing granite plate flatness grade benchmarks.
2. Calculate required uncertainty at the plate level, then assign a grade that keeps the surface contribution acceptably below the total measurement error budget.
3. Confirm plate size from actual part envelope, fixture footprint, and hand clearance, because oversized plates can complicate support stability and recalibration handling.
4. Inspect the calibration certificate for traceability, measurement grid density, support configuration, and ambient temperature, not simply the flatness value alone.
5. Assess usage intensity, including shift pattern, contact points, and abrasive contamination, because wear rate strongly influences the practical value of granite plate flatness grade benchmarks.
6. Specify support stand rigidity and leveling method, since poor support can distort a compliant setup and invalidate an otherwise correct plate grade.
7. Review material quality, density, and fine-grain structure, because stable granite reduces thermal response, edge chipping, and long-term dimensional drift.
8. Plan maintenance intervals early, including cleaning, cover use, wear mapping, and resurfacing criteria, so the selected benchmark remains meaningful over time.

Application scenarios and grade fit

Precision inspection and calibration labs

Laboratory environments usually require the strictest granite plate flatness grade benchmarks. The plate may support gauge blocks, height gauges, comparators, or optical alignment tasks where tiny surface errors propagate quickly.

In these settings, higher grades are justified when the uncertainty model is tight and traceable results are mandatory. Environmental control, stable support, and frequent verification matter as much as the nominal grade itself.

Production line inspection cells

On production floors, granite plate flatness grade benchmarks must balance accuracy with durability. The plate often supports repetitive checks, quick setups, and mixed operator handling under variable thermal and contamination conditions.

An inspection-grade plate is often appropriate when tolerances are moderate and throughput is high. However, the chosen benchmark should reflect fixture loads, contact patterns, and the need for consistent pass-fail decisions.

Heavy workshop and layout operations

Workshop use emphasizes robustness. Flatness still matters, but the work may involve larger parts, bluing, setup tools, or rougher handling. In these cases, workshop-grade plates can be acceptable if metrology risk remains controlled.

The mistake is assuming any large granite block qualifies as a reference. Even for layout tasks, defined granite plate flatness grade benchmarks improve fit-up checks, jig positioning, and maintenance repeatability.

Commonly overlooked risks

Ignoring support point design

A certified plate can deform in service when the stand does not support it at recommended locations. This creates false conclusions about wear or grade failure when the true problem is mechanical setup.

Focusing only on initial certification

Granite plate flatness grade benchmarks are not static. Frequent loading, poor cleaning practice, and accidental impacts gradually change the surface. A certificate from delivery day does not protect long-term inspection integrity.

Using a high grade in a poor environment

A premium plate delivers limited value in areas with unstable temperature, vibration, or airborne grit. Environmental instability can overwhelm the benefit of tighter granite plate flatness grade benchmarks.

Missing local wear patterns

Many plates wear in the same small zone where measurements are repeated. Overall flatness may look acceptable while local repeatability has already degraded enough to affect critical inspection decisions.

Practical execution tips

• Map actual contact zones on the plate and compare them with the calibration grid to identify whether the reported benchmark reflects real use conditions.
• Record ambient temperature variation near the plate for several shifts before upgrading grade, since environmental drift may dominate the inspection result.
• Use protective covers and disciplined cleaning between jobs to reduce embedded grit, surface scratching, and premature loss of flatness performance.
• Schedule verification by risk level, with shorter intervals for high-load, high-cycle, or high-value measurement stations using tighter tolerances.

Summary and next action

Granite plate flatness grade benchmarks provide a practical framework for aligning surface plate performance with real inspection needs. The correct benchmark depends on uncertainty targets, workload, environment, support conditions, and maintenance discipline.

Start with the measurement objective, verify the relevant standard, review calibration detail, and assess how the plate is actually used. That sequence turns granite plate flatness grade benchmarks from a catalog label into a reliable inspection control tool.

For best results, document plate grade, support layout, verification interval, and wear-risk zones in one control record. This simple step improves consistency, audit readiness, and long-term measurement confidence across industrial inspection workflows.
