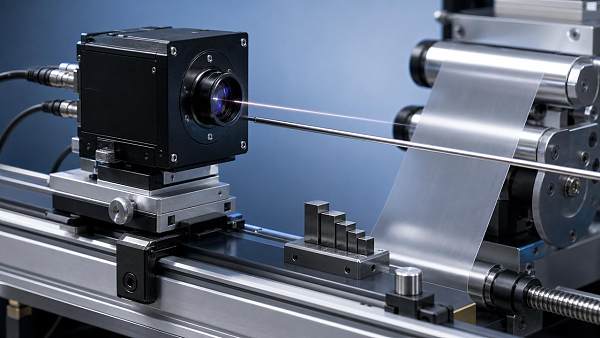

Optical Micrometer Linearity Data: What Accuracy Claims Miss

Accuracy claims on datasheets often feel decisive, yet they rarely show how an instrument behaves across its entire stroke. That gap matters in precision work.

Optical micrometer linearity data reveals deviation trends, edge effects, and calibration stability. It turns a simple accuracy promise into evidence that supports lower-risk technical decisions.

In cross-industry environments, this matters for electronics, medical devices, battery production, aerospace parts, converted materials, and automated inspection lines.

What is optical micrometer linearity data, and why does it matter?

Optical micrometer linearity data shows how closely measured output follows the true value across the full measuring range.

A sensor may claim excellent accuracy at one reference point. That does not prove equal performance at every position.

This is why optical micrometer linearity data is more than a calibration note. It is a map of measurement behavior.

Typical data includes maximum deviation, best-fit error, endpoint error, repeatability context, and the test conditions behind the result.

Without that context, a headline specification can hide slope drift, non-uniform response, or localized distortion near range limits.

For high-speed inline control, small linearity deviations can shift pass-fail thresholds and create unstable process capability results.

For laboratory validation, they can weaken correlation between systems, especially when separate sites compare traceable measurements.

Key terms worth separating

• Accuracy: closeness to the true value under stated conditions.
• Linearity: consistency of response across the full range.
• Repeatability: closeness among repeated measurements.
• Resolution: the smallest detectable change.

A system can have fine resolution and good repeatability while still showing weak linearity over distance or width.

Why do accuracy claims miss important performance details?

Most datasheets compress complex behavior into one or two numbers. Those values are useful, but they are not the full story.

Some accuracy claims are based on ideal alignment, narrow temperature windows, controlled targets, or a limited calibration span.

Optical micrometer linearity data exposes whether those claims remain trustworthy when the part moves across the entire beam field.

That is critical when products vary in size, shape, transparency, edge quality, or motion speed.

A single accuracy number also masks where error concentrates. End zones may behave differently from the center.

Environmental sensitivity can amplify that effect. Thermal shift, vibration, airborne contamination, and lighting interaction all influence practical results.

Common gaps hidden by a headline specification

• No deviation curve across the measuring range.
• No statement of calibration interval or drift rate.
• No detail on target material or edge condition.
• No temperature compensation explanation.
• No traceability reference to ISO/IEC 17025 or NIST-linked practice.

When optical micrometer linearity data is absent, comparison becomes marketing-led rather than evidence-led.

How should optical micrometer linearity data be read correctly?

Start with the test method. A clean linearity chart means little if the setup does not match the intended application.

Check whether the data uses endpoint linearity or best-fit linearity. The difference can materially change the apparent result.

Then review range utilization. Some instruments perform well in the central zone but degrade near the limits.

Optical micrometer linearity data should also be linked to sample rate, motion state, and edge algorithm behavior.

Static bench performance does not guarantee dynamic line performance where flutter, web movement, or rotational eccentricity exist.

Reading checklist

1. Confirm the reference standard and calibration traceability.
2. Identify whether data covers full range or selected points.
3. Look for deviation plots, not only summary values.
4. Compare temperature, mounting, and alignment assumptions.
5. Ask whether transparent, reflective, or textured targets were tested.

When these details are visible, optical micrometer linearity data becomes a decision tool instead of a technical appendix.

Which applications depend most on strong linearity performance?

Applications with tight tolerances and broad measuring spans gain the most value from robust linearity verification.

Examples include wire diameter control, battery electrode coating width, connector pin inspection, tube extrusion, and precision slit material monitoring.

In semiconductor-related handling, minor nonlinearity can affect gap verification, stage alignment checks, and micro-feature dimension screening.

In aerospace supply chains, optical micrometer linearity data supports confidence in parts requiring traceable geometry consistency across batches.

Medical production lines also depend on stable measurement when tubing, molded components, or catheter features must meet repeatable dimensional limits.

Even general industrial converting lines benefit because linearity problems can create false rejects and hidden scrap costs.

Signals that your process needs deeper linearity review

• Different results appear at different positions within the same measuring window.
• Correlation against master gauges worsens near tolerance edges.
• Frequent recalibration is needed to maintain acceptance rates.
• Multiple production sites report inconsistent dimensional outcomes.

How can systems be compared beyond marketing specifications?

A better comparison starts with the same use case, not the same brochure layout.

Request optical micrometer linearity data under matched conditions, including range, speed, material, and environmental constraints.

Then compare measurement uncertainty contributors. Linearity should be considered with repeatability, thermal drift, alignment sensitivity, and calibration burden.

Lifecycle cost also matters. A cheaper device with weak linearity may increase downtime, false sorting, and verification labor.

Comparison table for practical evaluation

What mistakes create risk when evaluating optical micrometer linearity data?

One mistake is treating linearity as identical to overall accuracy. It is only one part of total measurement confidence.

Another mistake is ignoring installation factors. Mechanical stress, bracket rigidity, cable routing, and thermal gradients can distort field performance.

A third risk is accepting optical micrometer linearity data without asking how old the calibration evidence is.

There is also danger in comparing two systems that use different definitions or calculation methods for linearity.

Finally, some teams overlook process-side economics. A tiny measurement bias may trigger large sorting losses over millions of parts.

Fast risk screen

How should the next evaluation step be planned?

Build a short validation matrix before selection. Include part types, tolerance bands, motion states, temperature range, and required traceability level.

Use that matrix to request optical micrometer linearity data that reflects actual operating conditions, not generic demonstration settings.

If possible, verify with known standards and a limited production trial. Correlate results against an established reference method.

This approach reduces uncertainty, improves cross-site consistency, and supports a more defensible specification decision.

Optical micrometer linearity data should not be treated as optional detail. It is one of the clearest indicators of practical measurement integrity.

The strongest outcomes come from combining deviation evidence, calibration discipline, and application-matched testing before final approval.
